Getting Started With Develocity for Docker

Docker support is not enabled by default. To enable it, contact Develocity support.

Installation

Develocity server installation isn’t covered here. Consult one of the following installation manuals for help with installation:

The examples in this guide use develocity.example.com as the Develocity hostname with HTTPS enabled.

Develocity Docker Agent

The Develocity Docker agent runs alongside your Docker builder as a separate process, on the same host where you run docker buildx build. It requires no change to your Dockerfiles or build commands.

  • Docker Engine 24.0 or later, with the docker CLI on PATH

  • Docker Buildx 0.13 or later

  • Java 21 or later

  • Network access to your Develocity server

  1. Download the agent JAR:

    curl -OL https://develocity-docker-build-agent.gradle.com/develocity-docker-agent-0.9.0.jar

    To verify the download before running it, see Verifying the Signature of the Agent JAR in the Docker agent user manual.

  2. Start the agent, pointing it at your Develocity server with the DEVELOCITY_URL environment variable:

    DEVELOCITY_URL=https://develocity.example.com java -jar develocity-docker-agent-0.9.0.jar

    The agent accepts no command line arguments: it is configured entirely through environment variables.

  3. Wait for the agent to report that it is ready:

    Output
    subscribed to BuildKit, waiting for builds

To publish to a Develocity instance that requires authentication, configure an access key. See Authenticating With Develocity in the Docker agent user manual.

Build Scan

A Build Scan is a record of each Docker image build, captured and published to your Develocity instance. Each Build Scan includes the build steps, their console output, and a searchable history across all builds.

Quick Start

While the agent is running, every image build performed by the observed builder publishes a Build Scan. The agent observes the builder currently selected for its Docker CLI environment: see How the Agent Observes Builds in the Docker agent user manual. Run any image build:

docker buildx build -t acme/app .

As the build completes, the agent logs a line similar to:

Output
scan published: https://develocity.example.com/s/3z475bz247h5g

Follow that link to view your Build Scan.

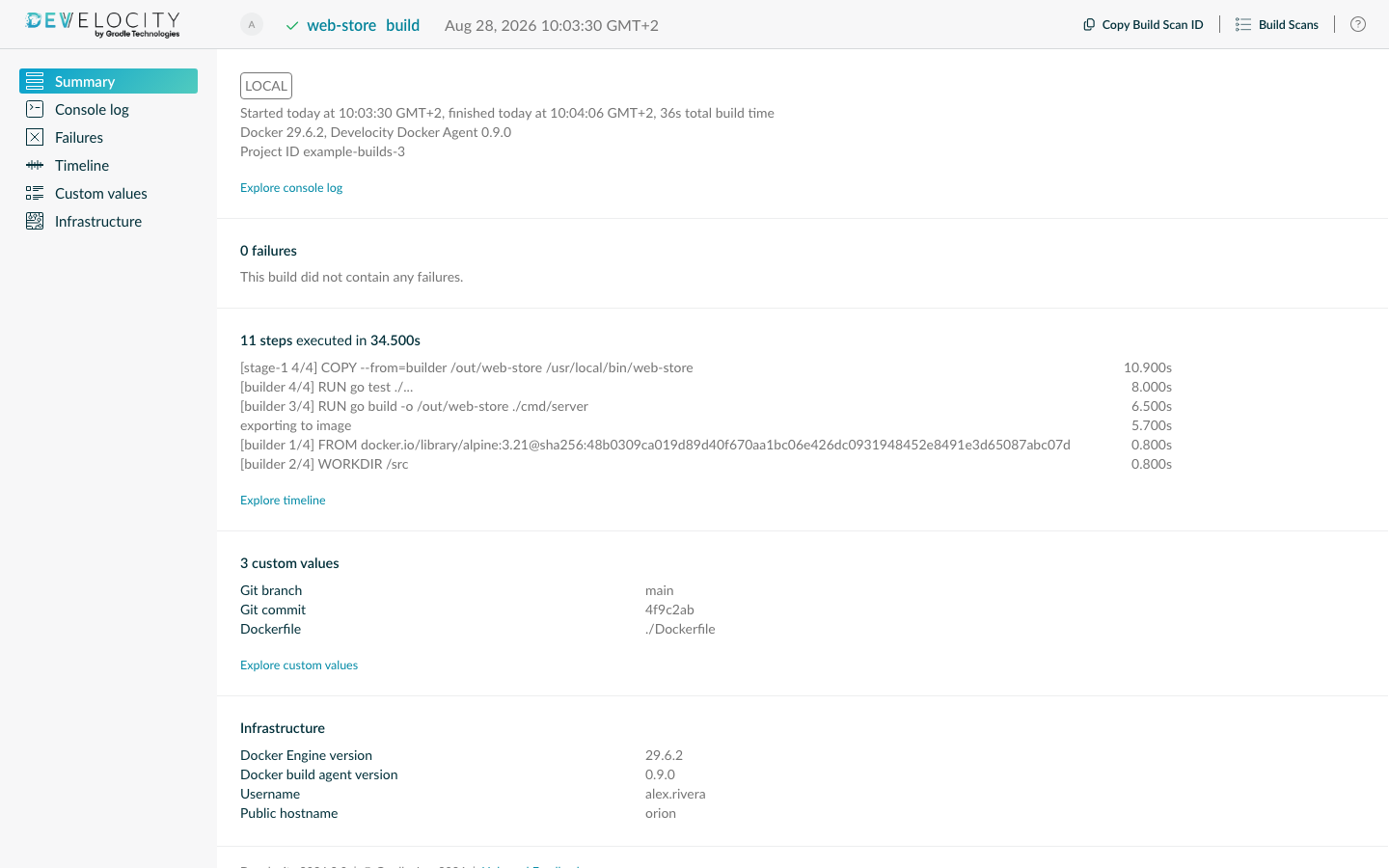

Docker Build Scan summary view of a successful build
Docker Build Scan Summary

Build Scan publication is passive with regard to the build process: it doesn’t affect the outcome or outputs of your build. The agent won’t cause build failures, even when there is no connection to the Develocity server when trying to publish.

Find and View Any Build Scan

Search through all captured Build Scan records by going to https://develocity.example.com/scans.

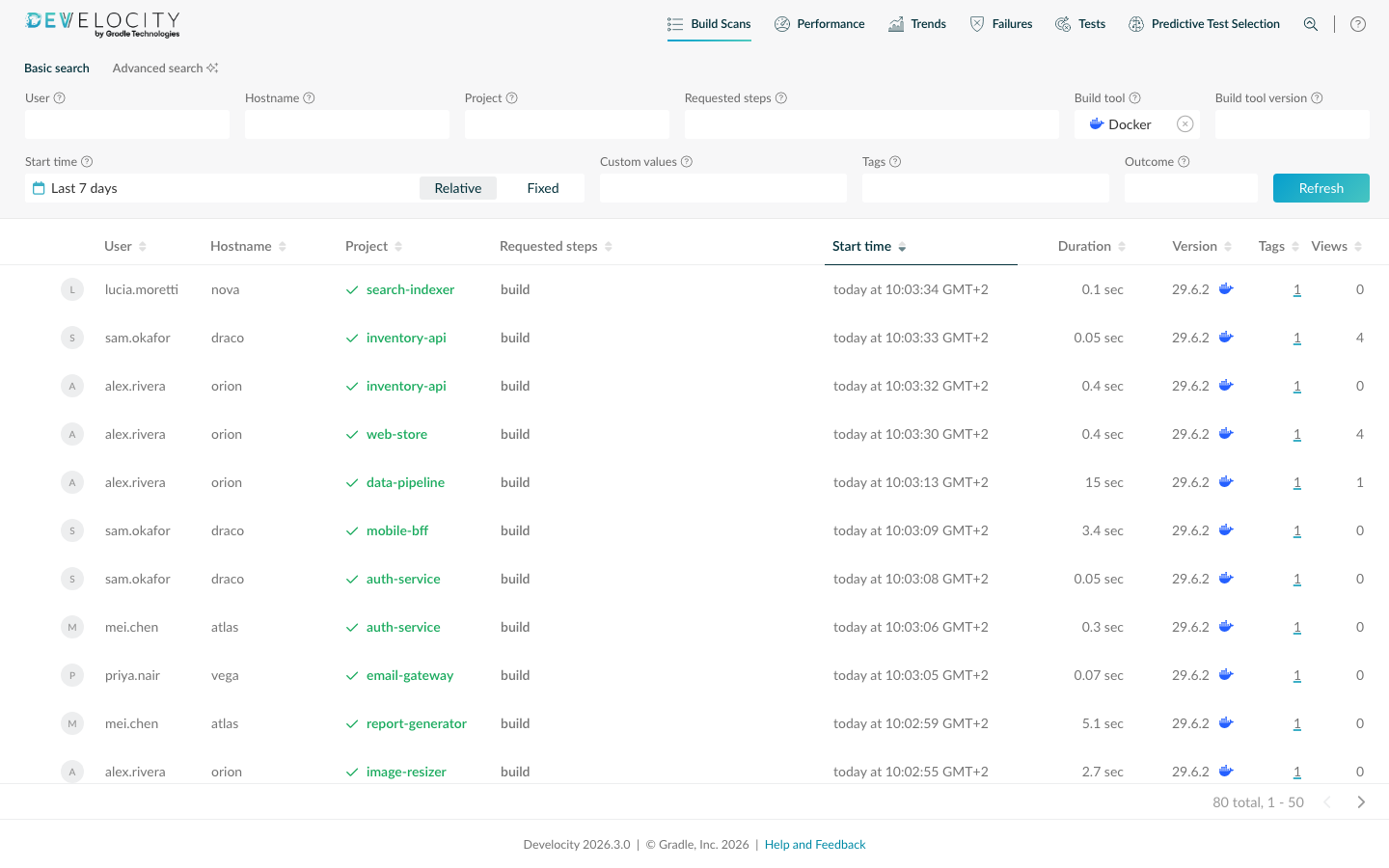

Build Scan list filtered to Docker builds
Build Scan List Filtered to Docker Builds

Search by project name, username, build outcome, start time, and more. By default, the list shows the most recent Build Scan records first.

Inspect Build Steps

Each Build Scan breaks the image build down into its individual steps. For every step you can see how long it took, its outcome (passed, cached, canceled, or failed), and the console output it produced. The timeline highlights the build’s critical path, and selecting a step opens its details.

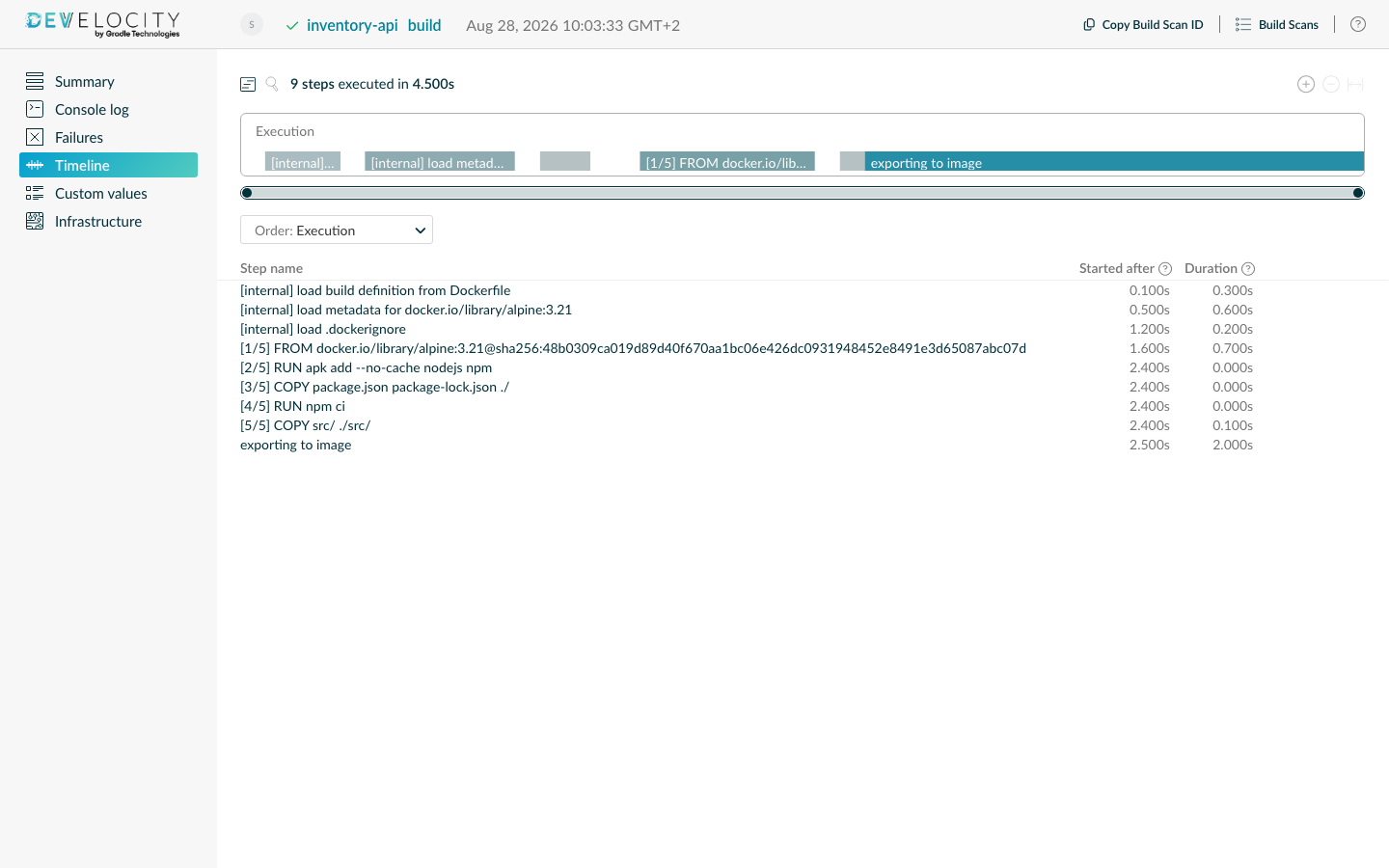

Timeline view showing the steps of an image build
Timeline of an Image Build

Failed steps show their console output, and the build’s exit code is reported alongside.

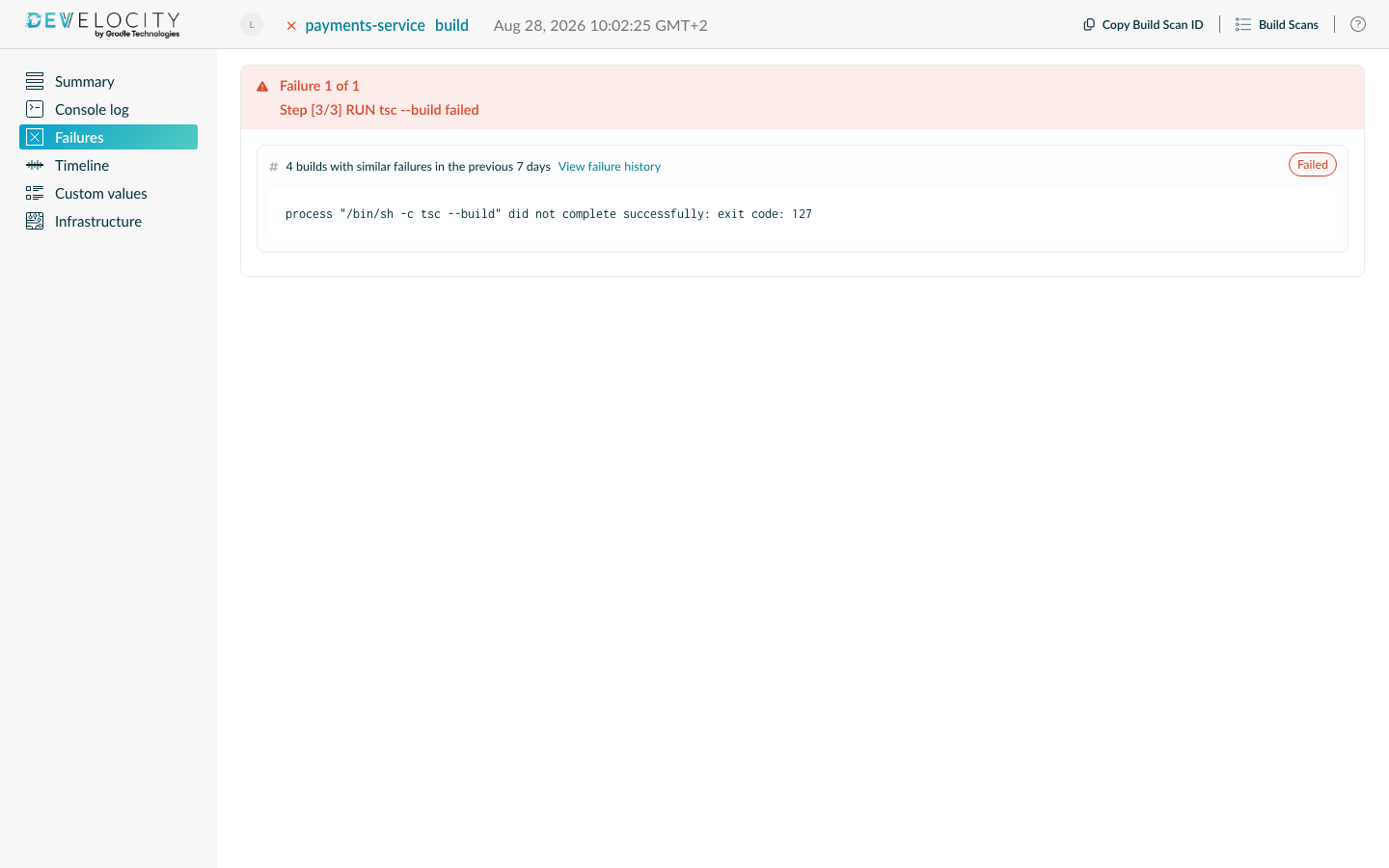

Failures view showing a failed step with its error output
Failure View of a Failed Image Build

The agent adds some metadata automatically, and each Build Scan can be enriched further with custom tags, values, and links passed as build arguments: see Extending Build Scan in the Docker agent user manual for the available options. Captured automatically:

  • A CI or LOCAL tag, depending on where the build ran, and the name of the CI provider

  • VCS information for git checkouts: the repository URL and the commit identifier, and the branch name when the agent can resolve it (see VCS Information in the Docker agent user manual)

  • A link to the corresponding CI build on TeamCity; for other CI providers, pass the link with a DEVELOCITY_LINK_«label» build argument
